Description
Product Description

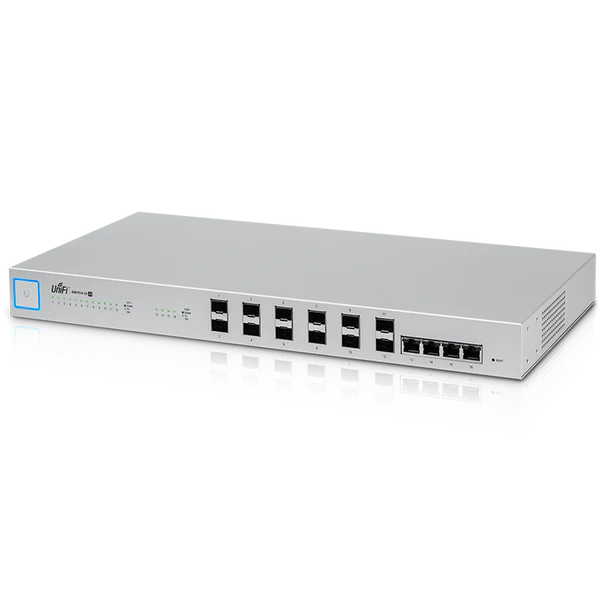

| US-16-XG | |
|---|---|
| Dimensions | 443 x 221 x 43 mm (17.44 x 8.70 x 1.69″) |
| Weight Without Mount Brackets With Mount Brackets |
2.62 kg (5.78 lb) 2.71 kg (5.97 lb) |
| Total Non-Blocking Line Rate | 160 Gbps |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238.10 Mpps |
| Max. DC Power Consumption | 36W (excludes SFP/SFP+ modules) |
| Power Method AC DC |
100-240VAC/50-60 Hz, Universal Input DC 56W, 57 to 20V, with 48/24VDC Terminal Block |
| Power Supply | AC/DC, Internal, 56W DC |
| Supported Voltage Range | AC: 100 to 240VAC DC: 57 to 20VDC |
| Rack-Mount | Yes, 1U High |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| LEDs Per Port | Speed/Link/Activity |
| Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3 |
1.0 dBr 10.7 dBr 12.2 dBr 12.8 dBr |
| Networking Interfaces | (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In-Band |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
