Description
Product Description

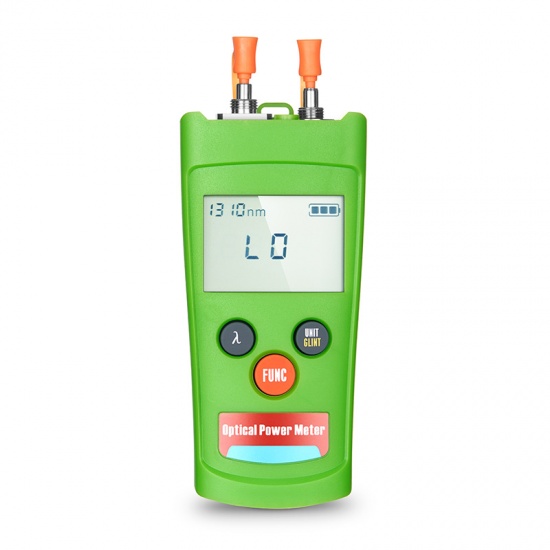

FHOM-202 Optical Power Meter + Visual Fault Locator
FHOM-202 handheld optical multimeter is an integrated unit of optical power meter and visual fault locator with compact size and lightweight. It allows to perform optical power, loss measurements and fiber faults tracing visually, which is mainly used in FTTx networks and fiber network testing. This tester can perform closed-loop tests, and can also work individually.
Description
OPM Measurement Range
-70dBm to +6dBm
OPM Calibrated Wavelengths
850/1300/1310/1490/1550/1625nm
OPM Resolution
0.01dB
OPM Accuracy
±0.2 dB
Linearity
±0.2dB
VFL Output
1mW
OPM Connector
2.5mm Universal
VFL Connector
2.5mm Universal
Cable Type
MMF & SMF
Auto-off Function
Supported
Power Supply
2xAA Batteries
Relative Humidity
< 90% (non-condensing)
Operating Temperature
-10℃ to +50°C
Storage Temperature
-20℃ to +60°C
Dimensions
4.1”x2”x1.3” (105x52x34mm)
Weight
100g
