Description
Product Description

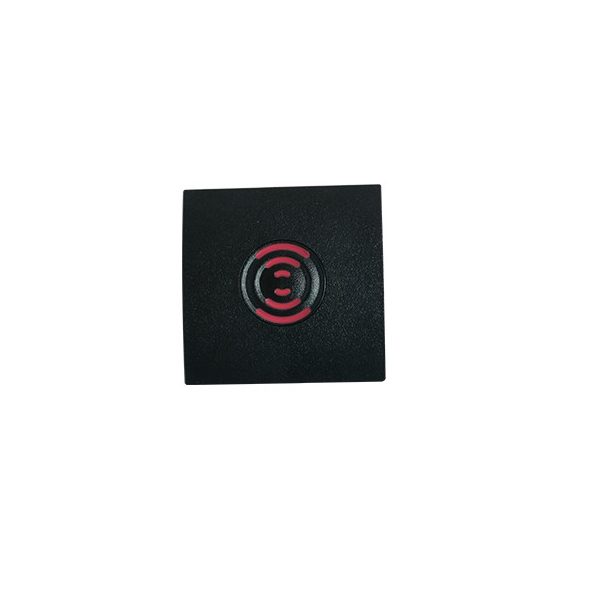

| Model | KR200E: 125kHz Proximity Card Reader
KR200M: 13.56MHz Mifare Card Reader |
| Read Range | KR200E Up to 10 CM / KR200M Up to 5 CM |
| Reading time ( Card ) | ≤300 ms |
| Power | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Output Card Format | 26bit Wiegand (E) / 34bit Wiegand (M) |
| Output Pin Format | 8 bits |
| LED indicator | 2 Color LED Indicators (Red and Green) |
| Beeper | yes |
| Operating temperature | -10° to +70°C” |
| Operating Humidity | 10% to 70% |
| Color | Black |
| Material | ABS+PC with texture |
| Dimension: (WxHxD) mm | 86*86*16.8 |
| Weight | 50g |
| Index of Protection | IP65 |
