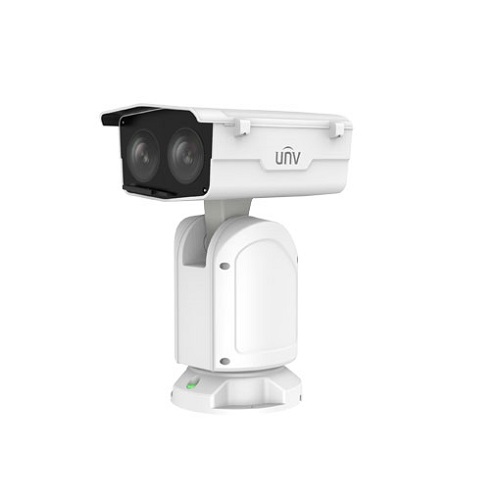

Uniview IPC7622EL-X55UG 1/2.8″ CMOS, ICR ,1920×1080:60fps Camera Price in Dubai UAE

Uniview IPC7622EL-X55UG 1/2.8″ CMOS, ICR ,1920×1080:60fps Camera Price in Dubai UAE

SKU : IPC7622EL-X55UG Category :

Inclusive of VAT

Description

Product Description

IPC7622EL-X55UG
Camera
Sensor 1/2.8″ progressive scan, 2.0megapixel, CMOS
Lens 6.4~352mm,AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 55
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
6.4mm 99.3(325.7ft) 39.7(130.2ft) 19.9(65.3ft) 9.9(32.5ft)
352mm 5462.1(17915.7ft) 2184.8(7166.1ft) 1092.4(3583.1ft) 546.2(1791.5ft)
Angle of View (H) 42.0° ~ 1°
Angle of View (V) 34.8°~0.5°
Angle of View (O) 51.6°~1.1°
Shutter Auto/Manual, shutter time: 1s ~ 1/100000 s
Minimum Illumination 0.002lux (F1.8,AGC ON,Colour),
0 lux with IR
Iris Auto/manual; F1.8 ~ F6.5
Day/Night IR-cut filter with auto switch(ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
Devotional Optical Defog
WDR 120dB
VF Laser 1000m(3280ft)
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream:2MP (1920×1080)@60fps
Sub Stream:2MP(1920×1080)@60fps;
Third Stream:D1(720×576)@60fps
HLC Supported
BLC Supported
Gyroscope Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Two way audio Supported
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF(Profile S, Profile G),API
Pan & Tilt
Pan Range 360°
Pan Speed 0.1°/s ~140°/s
Preset speed: 140°/s
Tilt Range –90° ~ +45°
Tilt Speed 0.1° ~50°/s
Preset speed:50°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Power-off memory Supported
Keep watch Supported
Interface
Audio I/O 1 Input: impedance 35 kΩ; amplitude2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 7/ 2
Serial Port 1 RS485
Network 10M/100M/1000M Base-TX Ethernet + 100M/1000M SFP
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [pp]
General
Power DC 48V±25%/DC 24V±15% (DC20V~DC60V)
DC -48V±25%/DC -24V±15% (DC-20V~DC-60V)
AC 24V±25%
Power consumption: Max 103.5W
(Ø x H) 280.1mmx364.9mm x502.8mm (Φ11.0” x 14.4” x19.8”)
Weight 14.5kg(31.9lb)
Working Environment –40°C ~ +70°C (-40°F ~ 158°F), Humidity :≤95% RH(non-condensing)
Ingress Protection IP66
