Description
Product Description

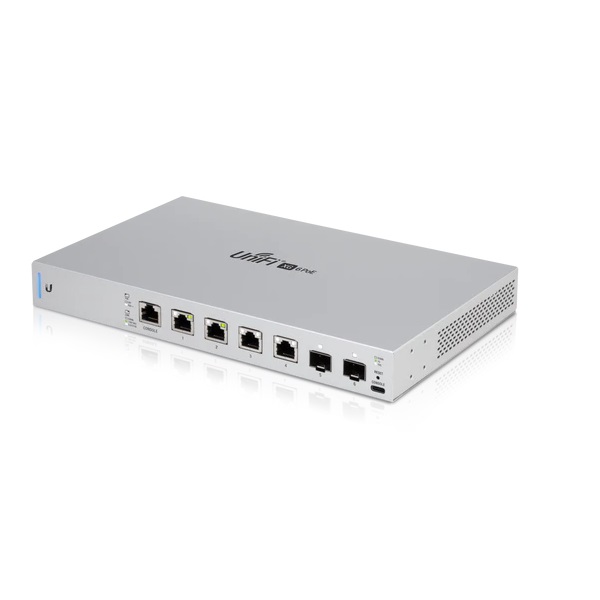

| US-XG-6POE | |
|---|---|
| Dimensions | 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25″) |
| Weight | 1.3 kg (2.87 lb) |
| Interfaces | Networking (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Management |
| Power Method | 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block |
| Power Supply | External AC/DC Adapter (Included) or DC Power Source |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption (Excluding PoE Output) | 40W |
| LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 18 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| POE | |
| PoE Interfaces | PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
| Max. PoE++ Wattage per Port by PSE | 60W |
| Voltage Range PoE Mode | 44-57V |
| Voltage Range PoE+/PoE++ Mode | 50-57V |
