Description
Product Description
|
Specifications
|
||
|---|---|---|
| Network | Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at |
| General | Certification | FCC, CE, RoHS |
| Environment | Operating Temp: 0°C to 40°C (32°F to 104°F); Storage Temp: -40°C to 70°C (-40°F to 158°F); Operating Humidity: 10% to 90% RH; Storage Humidity: 5% to 90% RH | |

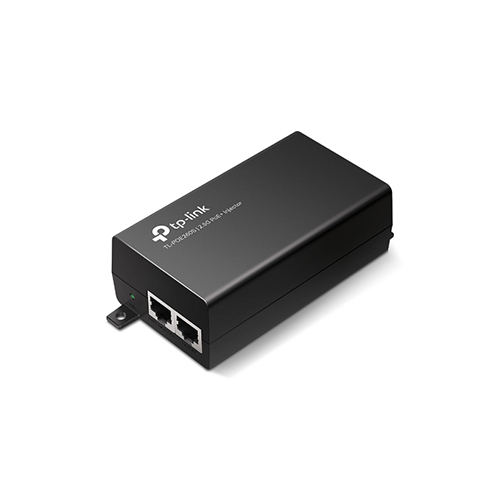

| Package Contents | Package Contents | 2.5Gbps PoE+ Injector TL-POE260S, Installation Guide, Power Cord, RJ45 Cable, Wall Mounting Kits |
| Hardware Features | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (max 100 m); 100BASE-TX: UTP category 5, 5e cable (max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (max 100 m); 2.5GBASE-T: UTP category 5e or above cable (max 100 m) |
| Ports | 1× 10/100/1000/2.5Gbps RJ45 data-in port; 1× 10/100/1000/2.5Gbps RJ45 power+data-out port; 1× AC socket | |
| Power Consumption | Input: 100-240 V, 50/60 Hz; Output: Auto-detects power requirements (max. 30 W) | |
| Basic Function | Auto-Sensing Algorithm for 802.3af/at PD; Auto-detects power requirements; Wall-mounting and desktop installation supported; Plug-and-Play | |
| LED Indicator | ON: Supplying power normally; OFF: No power supply | |
| Dimensions | 4.9 × 2.3 × 1.4 in (125 × 59.4 × 36.8 mm) | |
