Description

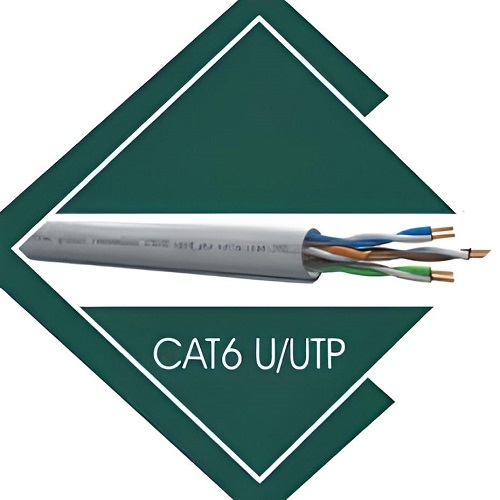

Product Description
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor TMT copper
Conductor Size (mm) 0,57
Insulation HDPE
Number of insulated conductors 8, twisted in 4 pairs
Color Code of Pairs Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket PVC compound
Standard Jacket Color Blue/Gray /Black
Standard Surface Marking Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force 50 N/mm2 max.
Short Term Bend Radius 8xOD (mm)
Long Term Bend Radius 4xOD (mm)
Storage Temperature -20 to +80C
Temperature operating range -20 to +60C
Installation temperature range 0 to +50C
Flame Test IEC 60332-1
ELECTRICAL SPECIFICATIONS
Characteristic Impedance 100±6 Ohm @ 1-250 MHz Dielectric strength 1500 Volts/1 minute min rms
DC Resistance 93 Ohm/Km max. Velocity of Propagation (NVP) 67-69%
Resistance unbalance 2% max. Propagation Delay 514 + 36/f. nS/100m max @ 1-300 MHz
Capacitance 56 pF/m max. @ 1 KHz Propagation Delay Skew 35 nS/100m max @ 1-300 MHz
Cap. Unbalance (wire to ground) 1600 pF/m max. @ 1 KHz. Insulation Resistance 5000 MOhm•m min. @ 500 Vdc
Voltage rating 72 Vdc max. Coupling attenuation 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
