Description
Product Description
|
Specifications
|
||
|---|---|---|

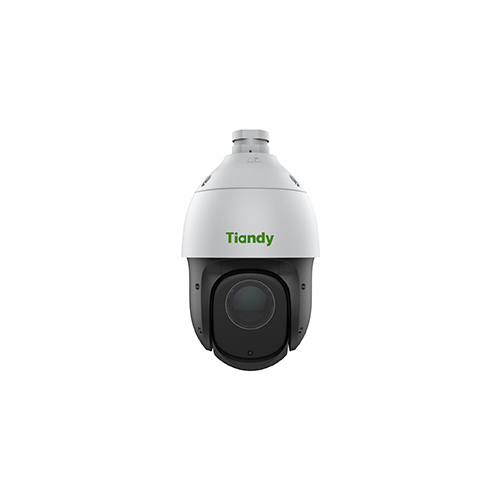

| Model | Tiandy TC-H326S | |
| Image Sensor | 1/2.8″ CMOS | |
| Min. Illumination | Color: 0.001 lux @ (F1.6, AGC ON); B/W: 0 lux with IR | |
| Shutter Time | 1s ~ 1/100,000s | |
| Day & Night | IR-cut filter with auto switch (ICR) | |
| Smart IR | Yes | |
| WDR | 120 dB | |
| S/N Ratio | 39 dB | |
| Lens | Focal Length: 4.8mm ~ 159.6mm | |
| Optical Zoom | 33X | |
| Digital Zoom | 16X | |
| Zoom Speed | <5s | |
| Aperture Range | F1.6 ~ F4.4 | |
| Aperture Type | Auto (P-Iris) | |
| Field of View | 60.5° ~ 2.0° (H); 33.7° ~ 1.1° (V); 66.8° ~ 3.2° (D) | |
| Focus Control | Auto/Semi-auto/Manual | |
| Close Focus Distance | 200mm ~ 1500mm | |
| DORI Distance | Detect: 2300m; Observe: 920m; Recognize: 460m; Identify: 230m | |
| Pan Range | 360° | |
| Pan Speed | Manual: 0.1° ~ 200°/s; Preset: 240°/s | |
| Tilt Range | -10° ~ 90° (Default -3° ~ 90°) | |
| Tilt Speed | Manual: 0.1° ~ 120°/s; Preset: 180°/s | |
| 3D Position | Yes | |
| Preset | 300 | |
| Cruise | 16, up to 32 presets per cruise | |
| Scan | 8 | |
| Pattern | 8, each with 600s memory or 1000 orders | |
| Scheduled Task | Preset, Cruise, Scan, Pattern | |
| North Point | Yes (Manual setting) | |
| Power-off Memory | Yes | |
| IR LEDs | 6 | |
| IR Distance | Up to 150m | |
| Wavelength | 850nm | |
| IR Irradiation Angle | Yes | |
| Video Compression | S+265/H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps ~ 16 Mbps | |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC | |
| Audio Sampling Rate | 8 KHz/32 KHz/48 KHz | |
| Max. Resolution | 2MP, 1920×1080 @ 30fps | |
| Main Stream | PAL: 25fps; NTSC: 30fps | |
| Sub Stream | PAL: 25fps; NTSC: 30fps | |
| Third Stream | PAL: 25fps; NTSC: 30fps | |
| BLC | Yes | |
| HLC | Yes | |
| AGC | Yes | |
| 3DNR | Yes | |
| White Balance | Auto/Semi-Auto/Manual and various presets | |
| ROI | 7 dynamic areas for both main and sub stream | |
| OSD | 5 regions (max 127 characters each) | |
| Defog | Yes | |
| Flip | Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip | |
| Regional Exposure | Yes | |
| Regional Focus | Yes | |
| Demist | Yes | |
| Privacy Mask | 24 regions (up to 4 blocks in the same scene) | |
| General Alarm | Motion Detection; Mask Alarm; Alarm Input | |
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; etc. | |
| Linkage Method | Send Email; Trigger Sound; Trigger Recording; etc. | |
| Video Analytics | Human/Vehicle Classification; Tripwire; etc. | |
| Auto-Tracking | Yes | |
| Face Mode | Face Capture | |
| Face Capture Performance | Detect up to 32 faces; Capture up to 16 faces | |
| ANR | Yes | |
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; etc. | |
| System Compatibility | P2P; ONVIF; SDK; etc. | |
| Remote Connection | ≤ 7 | |
| User/Host | Up to 32 users with 4 user levels | |
| Client | Easy7 VMS | |
| Mobile Client | EasyLive Plus | |
| Web Compatibility | IE10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+ | |
| Communication Interface | 1*RJ45 (10/100Base-T) | |
| Audio I/O | 1 Input; 1 Output | |
| Alarm I/O | 1 Switching; Voltage ≤ DC24V, Current ≤ 1A | |
| Reset Button | Yes | |
| On-board Storage | Built-in Micro SD card slot, up to 512 GB | |
| Web Client Language | 19 languages | |
| Operating Temperature | -30℃ ~ 65℃ (-22℉ ~ 149℉) | |
| Operating Humidity | ≤ 95% RH | |
| Storage Temperature | -30℃ ~ 65℃ (-22℉ ~ 149℉) | |
| Storage Humidity | 10% ~ 95% RH (non-condensing) | |
| Power Supply | DC12V ±10%; PoE: IEEE 802.3at | |
| Power Consumption | 11W (IR OFF); 24W (IR ON) | |
| Protection | Surge 4000V; ESD 6000V; IP66 | |
| Material | Metal | |
| Boundary Dimensions | 161mm (D) x 276mm (H) | |
| Package Dimensions | 260mm (L) x 260mm (W) x 465mm (H) | |
| Gross Weight | 5.1 kg | |
| Net Weight | 3.5 kg | |
