Description
Product Description
Features and Benefits
Wi-Fi capacity requirements in classrooms, office spaces, and medium-size venues are rising due to the increase in the number of Wi-Fi connected devices. An increase in bandwidth requirements for applications and an ever-growing assortment of IoT devices puts further strain on already stretched Wi-Fi networks.

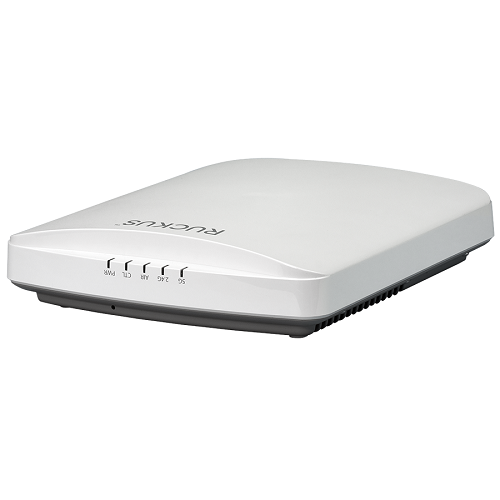

The R550 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is our mid- range dual-band, dual-concurrent AP that supports four spatial streams (2×2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.
- Stunning Wi-Fi Performance – Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns
- Serve more devices – Connect more devices simultaneously with four MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance
- Converged access point – Allow customers to eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using built-in Bluetooth® Low Energy and Zigbee, and also expand to any future wireless technologies
- Automate Optimal Throughput – ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
- Better Mesh Networking – Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks
- More than Wi-Fi – Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and RUCKUS analytics
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
General Specifications
| Antenna Patterns, per band | 64 |
| Antenna Gain | Up to 3 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone |
| Ethernet Ports | 2 x 1 GbE |
| IoT Support | IoT Onboard |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 574 Mb/s |
| PHY Rate at 5 GHz, maximum | 1200 Mb/s |
| Radio Chains and Streams | 2×2:2 (5 GHz / 2.4 GHz) |
| Rx Sensitivity at 2.4 GHz | -97 dBm |
| Rx Sensitivity at 5 GHz | -97 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality | Office/Retail |
| Venue Sub-Type | Classroom | Hallways | Office Space |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11ax |
| Wi-Fi Interface Standard at 5 GHz | 802.11ax |
Environmental Specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
