Description
DS-2CD2555FWD-IS Overview

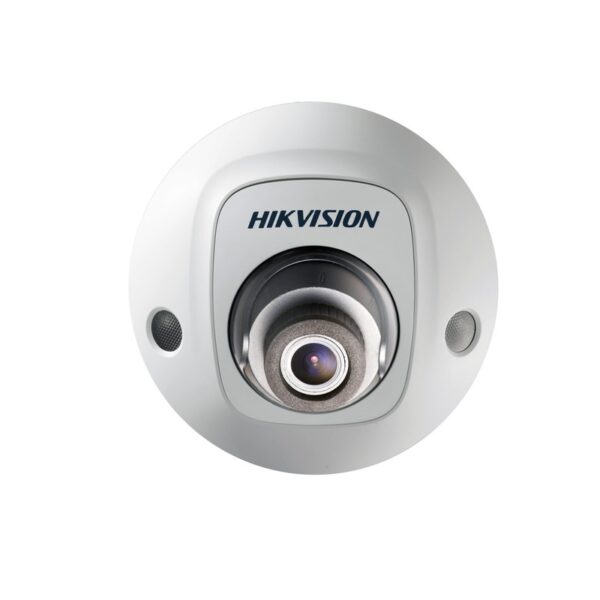

Hikvision DS-2CD2555FWD-IS is the 5 MP IR Fixed Mini Dome Network Camera.
Quick Spec
Table 1 shows the quick spec.
| Model | DS-2CD2555FWD-IS |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113° 4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92° 6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71° |
| Lens Mount | M12 |
| Adjustment Range | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
Product Details
Hikvision DS-2CD2555FWD-IS provides these key features:
• 2944 × 1656@20fps
• IR: up to 10 m
• H.265, H.265+
•120dB WDR
• Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• PoE
• EXIR
• Wi-Fi (Optional)
Compare to Similar Item
Table 2 shows the comparison.
| Model | DS-2CD2135FWD-IS | DS-2CD2555FWD-IS |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | 1/2.9″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR Color: 0.009 Lux @(F1.6, AGC ON), 0 Lux with IR |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s | 1/3 s to 1/100,000 s |
| Slow shutter | Support | Support |
| Adjustment Range | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
Get More Information
Do you have any question about the DS-2CD2555FWD-IS?
Contact us now via Live Chat or sales@router-switch.com.
DS-2CD2555FWD-IS Specification
DS-2CD2555FWD-IS Specification |
|
|
Camera |
|
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°
4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92° 6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71° |
| Lens Mount | M12 |
| Adjustment Range | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
|
Compression Standard |
|
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Triple Streams | Yes |
|
Image |
|
| Max. Image Resolution | 2944 × 1656 |
| Frame Rate | 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/ROI/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub-stream separately |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
|
Network |
|
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
|
Interface |
|
| Audio | with -S model：2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | with -S model：1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
|
Audio |
|
| Environment Noise Filtering | Support(-S) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
|
Smart Feature-set |
|
| Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections | Scene change detection |
| Recognition | Face Detection |
|
General |
|
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.625A, max. 7.5W
PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W |
| Impact Protection | IK08 Protection Level |
| Weather Proof | IP66 |
| IR Range | Up to 10m |
| Dimensions | Φ110 mm × 56.4 mm (Φ4.33″ × 2.22″) |
