Description
Product Description

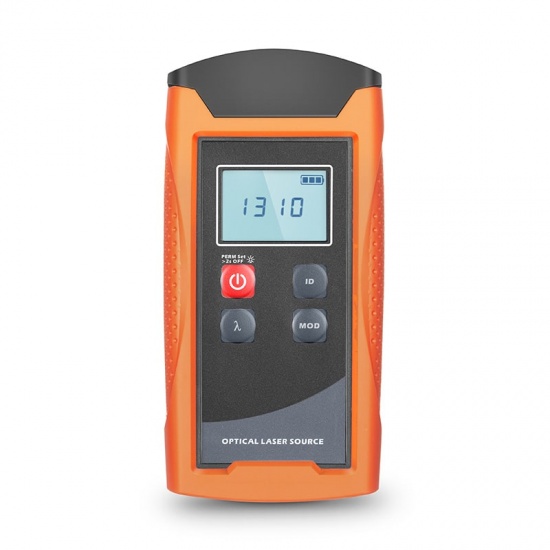

FOLS-201 Fiber Optical Light Source
FOLS-201 optical light source is a fiber optic tester with exquisite appearance and ergonomic design. It provides 1310nm and 1550nm dual-wavelength laser output for singlemode fiber measurements, which is mainly used in FTTx networks and fiber network testing. When combine with a power meter, the instrument is called an Optical Loss Test Set, or OLTS, typically used to measure optical power and end-to-end optical loss.
Description
Wavelengths
1310/1550nm
Cable Type
SMF
Emitter Type
FP
Output Power
> – 6dBm
Output Stability
±0.05dB/1hours or ±0.1dB/ 8hours
Modulation Frequencies
270Hz / 1KHz / 2KHz
Auto-off Function
Supported
Optical Connector
2.5mm FC/SC
Power Supply
2xAA Batteries
Relative Humidity
< 90% (non-condensing)
Operating Temperature
-10°C to +50°C
Storage Temperature
-20°C to +60°C
Dimensions(HxWxD)
6.3”x2.95”x1.26”(160x75x32mm)
Weight
180g
Back-light
Supported
