Description

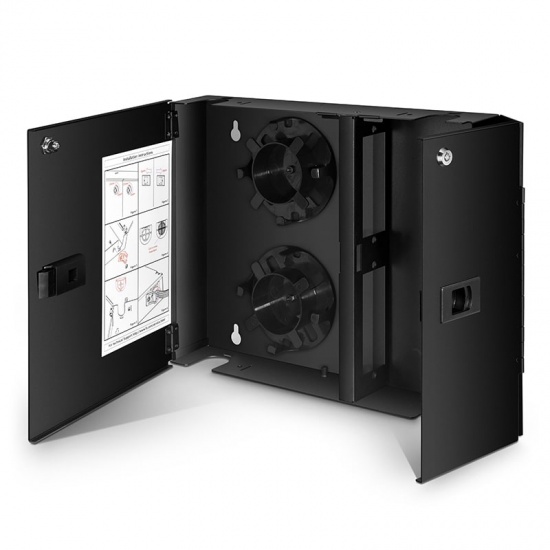

FHD Fiber Optic Wall Mount Enclosure
The wall mount interconnect fiber enclosure (FWME2) can house 2pcs FHD series fiber adapter panels or MTP modular cassettes. It provides a convenient convergence point for interconnecting and splicing in wall mount applications. The enclosure features a well-engineered solution for fiber and cable management on both the ingress and egress openings of the enclosure.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Description
Part Number
FHD-FWME2
Capacity
2 Ports
Fiber Count
Up to 48 Fibers (LC) or 576 Fibers (MTP?-24)
Material
Steel, Powder-coated Black
Mounting Type
Wall-Mountable
Dimensions (HxWxD)
10.2″x13.0″x2.3″ (259.6×330.6×59.1mm)
Compliant
TIA/EIA-568-C.3
Installation
Matching for FHD Series FAPs/Cassettes
