Description
• Input circuit current ≤0.1μA
Input impedance ≥50MΩ
• Patient current leakage ＜10μACalibrating
voltage 1mV±2%
• Skin voltage tolerance ≥±500mV
Time constant ≥3.2s
• Frequency response 0.05 Hz～250Hz
Sound emission level ＜15μVp-p
• Sensitivity threshold ≤20μVSignal channel interference ≤0.5mm
• Printer Thermal printer Paper 80mm*20m, roll
• Page speed 6.25, 12.5, 25, 50mm/s (±3%) Sensitivity printer 10mm/mV (auto),
2.5, 5, 10, 20mm/mV
• CPU 32 bits Safe class GB9706.1, Class I, Type CF
• Electricity AC 220V (±10%), 50Hz±1Hz, Power ≤60VA,
• AC 85～265V, 50/60Hz
• DC14.8V(2200mAh), rechargeable Li-ion battery Dimension
• Weight 310*270*73mm
• 1.45kg (with battery)

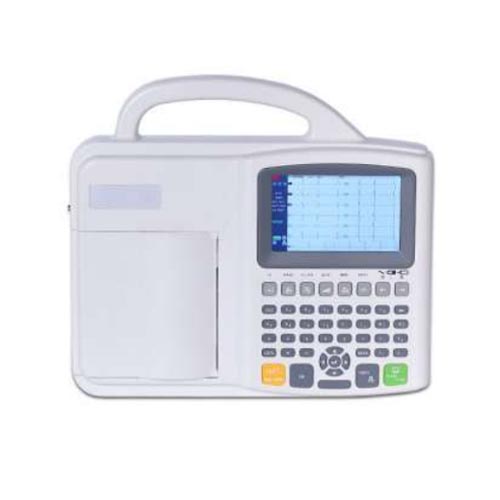

3 channel ECG machine with interpretation
5.0 inch color TFT LCD display
Simultaneous 12 leads acquisition and 1,
1+1, 3 channel (Manual/auto) recording
with high resolution thermal printer
Manual/auto working modes
Use digital isolation technology and digital
signal processing
Baseline stabilization inspection
Full alphanumeric silicon keyboard
Support U disk storage
