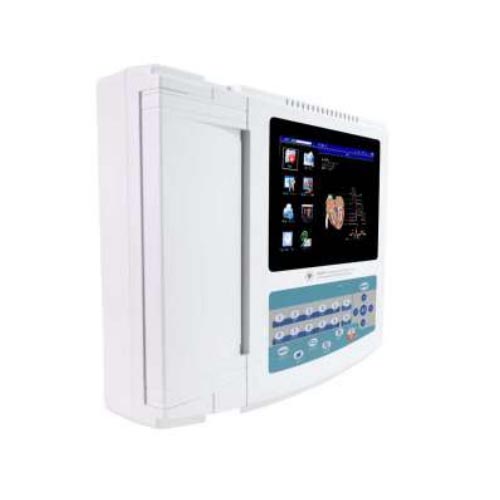

Description
• Startup indicator
• Power status indicator
• SPEED Change the ECG recording
speed.
• SEN Adjust the sensitivity manually.
• FILTER Set the filter mode.
• MODE Use MODE button to select the
print mode.
• PRINT Print the sampled ECG
waveform or end the printing.
• Switch button of input method Use this button to switch between numbers,
lowercase, capital and symbols.
• Setting button of acquisition system Collect ECG waveform and set the display mode
▪ Weigh: 3.2Kg
• Dimension: 340mm(L) * 320mm(W) *
85mm(H)
• Temperature: -40℃~+55℃
• Multi-language: Chinese, English, Turkish,
Portuguese, German
• Function: ECG-Sync software + USB cable
• Display: Display of 3/6/12-lead ECG
