Description
Product Description

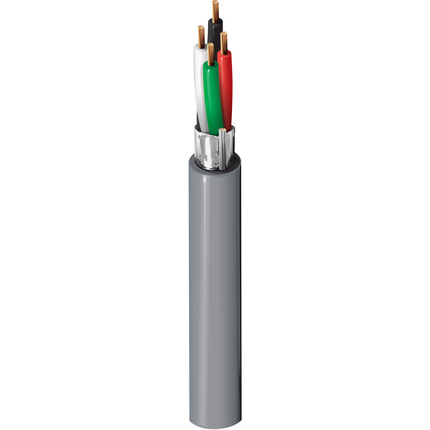

Belden 5502fE
Product Features:
Security & Sound Cable, Riser-CMR, 2-18 AWG stranded bare copper pairs with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord
Conductor
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 22 | 7×30 | BC – Bare Copper | 4 |
| Conductor Count: | 4 |
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| PP – Polypropylene | 0.008 in |
Color Chart
| Color |
|---|
| Black |
| Red |
| White |
| Green |
Outer Shield Material
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Aluminum/Polyester | Beldfoil® | 100 % | TC – Tinned Copper | 24 | Stranded (7×32) |
Outer Jacket Material
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC – Polyvinyl Chloride | 0.145 | 0.017 in | Yes |
Construction and Dimensions
Cabling
| Lay Direction | Twists |
|---|---|
| Left Hand | 4.8 twist/ft |
