Description

2MP 38x Starlight

Specifications

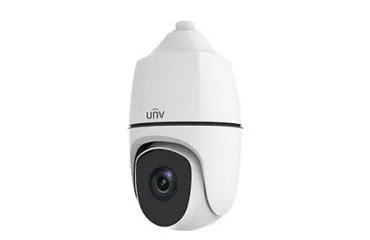

IPC6852SR-X38UG
Camera
Sensor 1/1.9″, progressive scan, 2.0megapixel, CMOS
Lens 5.7 ~ 216.6 mm (38x optical zoom) , AF automatic focusing and motorized zoom lens
Angle of View (H) 58.4° (wide) ~ 2.08° (tele)
Shutter Auto/Manual; shutter time: 1s ~ 1/100000 s
Minimum Illumination
Colour: 0.001Lux (F1.5, AGC ON)
0 Lux with IR
Iris Auto/Manual; F1.5 ~ F4.5
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range UP to 250m (820ft)
 Defog Optical Defog & Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream:2MP (1920×1080):Max. 60 fps;
Sub Stream:2MP (1920×1080):Max. 60 fps;
Third Stream: D1 (720×576): Max. 60 fps
HLC Supported
BLC Supported
EIS Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection, Auto tracking
Exception Detection Audio detection
Intelligent Identification Face detection
Statistical Analysis People counting
General Function
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP
Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,
SNMP
Compatible Integration ONVIF(Profile S, Profile G), API
Pan & Tilt
Pan Range 360° (endless)
Pan Speed
0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range –20° ~ +90° (auto reverse)
Tilt Speed
0.1° ~ 160°/s
Preset speed: 240°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface
Audio I/O
Audio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 2 / 1
Serial Port 1 RS485
Network 1 RJ45 10M/100M/1000M Base-TX Ethernet SFP Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power
24 V AC (Default) ±25%, 24 V DC±25%
Power consumption: 10.6~51W
Dimensions(Ø xH) Φ270 x 496.7mm (Φ10.6” x 19.6”)
Weight 9.69 kg (21.4 lb)
Working Environment –40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~ 90% RH(non-condensing)
Ingress Protection IP66
Vandal Resistant IK10
 Reset Button Supported
