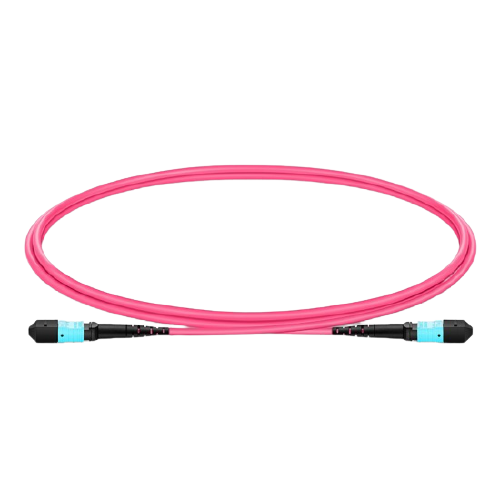

16 Fibers MTP Female to MTP Female OM4 Multimode Trunk Cable
16 Fibers MTP trunk cable is designed for 400G QSFP-DD SR8 optics direct connection and supporting 400G transmission for Hyperscale Data Center. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Description
Connector A
US Conec MTP Female (Pinless)
Connector B
US Conec MTP Female (Pinless)
Fiber Mode
OM4 50/125?m
Wavelength
850/1300nm
400G Ethernet Distance
100m at 850nm
Glass Fiber
Corning ClearCurve
Polish Type
APC to APC
Minimum Bend Radius
7.5mm
Insertion Loss
0.35dB Max (0.15dB Typ.)
Return Loss
?20dB
Attenuation at 850nm
?2.3dB/km
Attenuation at 1300nm
?0.6dB/km
Cable Diameter
3.0mm
Cable Jacket
Plenum (OFNP)
Installation Tensile Load
100 N
Long-Term Tensile Load
50 N
Operating Temperature
-10?C to +70?C
Storage Temperature
-40?C to +85?C
