Description

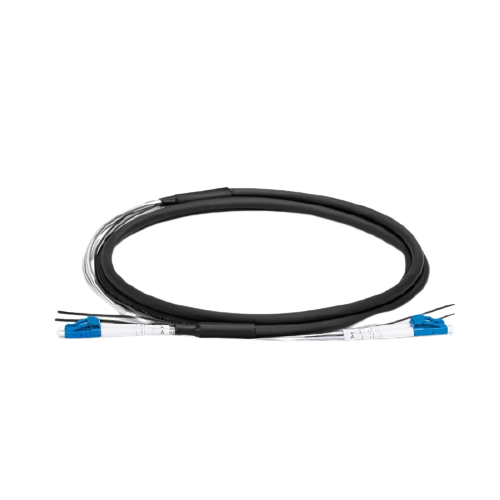

Armored LSZH Fiber To The Antenna (FTTA) Patch Cable for Outdoor Applications
FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.
Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.
Description
Connector Type
LC to LC
Polish Type
UPC to UPC
Fiber Mode
OS2 9/125?m
Wavelength
1310/1550nm
Insertion Loss
?0.3dB
Return Loss
?50dB
Fiber Grade
Corning G.657.A1
Min. Bend Radius (Dynamic/Static)
20/10D
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Duplex
Cable Jacket
Low Smoke Zero Halogen (LSZH)
Cable Diameter (Outer/Inner)
7.0/2.0mm
Armored Breakout Length (End A/B)
0.03/0.34m
Tensile Strength (N)
200/400 (Long/Short Term)
Crush Resistance (N)
1100/2200 (Long/Short Term)
Operating Temperature
-20~70?C
Storage Temperature
-40~80?C
